arc

Draw an arc

arc(
    x,
    y,
    radius,
    start,
    stop,
    [close=false],
    [pie=false],
    [stroke=#000000],
    [fill=#FFFFFF],
    [weight=1.00]
)

Draw an arc

Syntaxe

arc(x=10, y=10, radius=100, start=0, stop=HALF_PI, stroke="#000000", fill="#FFA000", weight=4);

Arguments

Name	Type	Required	Default	Description
`x`	float	yes	-	x-coordinate of the center
`y`	float	yes	-	y-coordinate of the center
`radius`	float	yes	-	Radius of the arc
`start`	float	yes	-	angle to start the arc, specified in radians
`stop`	float	yes	-	angle to stop the arc, specified in radians
`close`	bool	-	false	close the arc (useless if pie is used)
`pie`	bool	-	false	close the arc to the center (overrides close)
`stroke`	hexastring	-	#000000	Stroke color
`fill`	hexastring	-	#FFFFFF	Fill color
`weight`	float	-	1.00	Stroke weight (thickness)

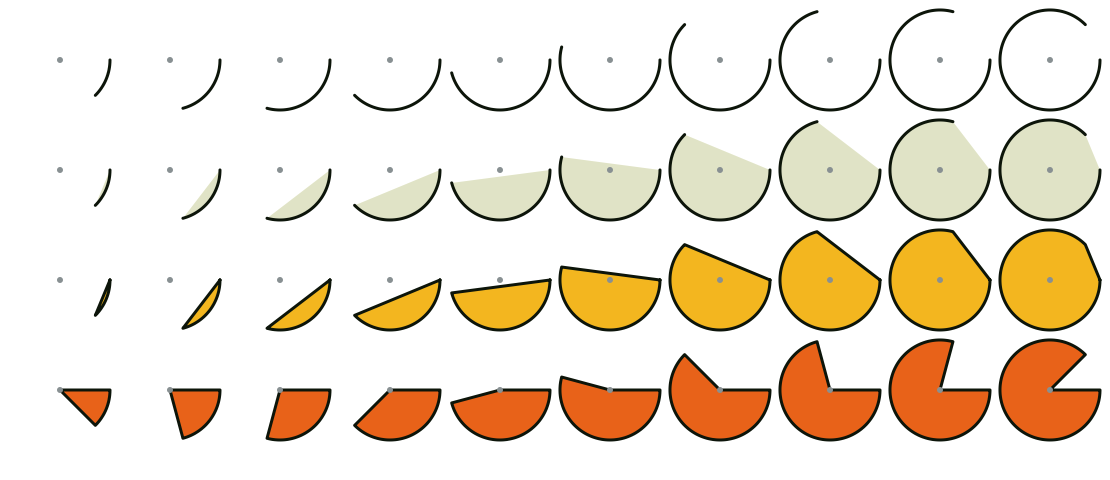

Full example

var margin = 10;
var radius = 50;

var x = radius + margin;
var y = radius + margin;

var gap = 10 ;

var startStart = 0;
var stopStart = PI / 4;
var stopEnd = TWO_PI - PI / 4;
var count = 10;
var stepX = radius*2 + gap;
var rowGap = radius * 2 + gap;

var canvasWidth = margin * 2 + radius * 2 + (count - 1) * stepX;
var canvasHeight = margin * 2 + radius * 2;
canvas(canvasWidth, canvasHeight * 11.2);


var black = "#0D150A";
stroke(black);
weight(3);

for (var i = 0; i < count; i++) {
    var t = i / (count - 1);
    var stopAngle = stopStart + t * (stopEnd - stopStart);

    arc(x + i * stepX, y, radius, startStart, stopAngle, fill="transparent");
    circle(x + i * stepX, y, 3, fill="#889092", stroke="transparent");

    fill("#E0E3C6");
    arc(x + i * stepX, y + rowGap, radius, startStart, stopAngle);
    circle(x + i * stepX, y + rowGap, 3, fill="#889092", stroke="transparent");

    fill("#F3B61F");
    arc(x + i * stepX, y + rowGap * 2, radius, startStart, stopAngle, close=true);
    circle(x + i * stepX, y + rowGap * 2, 3, fill="#889092", stroke="transparent");

    fill("#E86219");
    arc(x + i * stepX, y + rowGap * 3, radius, startStart, stopAngle, pie=true);
    circle(x + i * stepX, y + rowGap * 3, 3, fill="#889092", stroke="transparent");

}

def ring(x, y, d, start, arc_length, w, c) {
    fill("transparent");
    weight(w);
    stroke(c);
    arc(x, y, d, start, start + arc_length);
}

var rings = [];
var palette = ["#E0E3C6", "#F3B61F", "#E86219"];

coord_translate(width()/2, 925);


fill("transparent");

var w = 30 ;

for( var r = 40; r < 430; r += w) {
    randseed(r*PI);
    var rad = random(0,TAU);
    var al = random(rad,TAU);
    var col = randlist(palette) ;

    ring(0, 0, r, rad, al, w-2, col);
    // ring(0, 0, r, rad, al, 2, black);
}


save(whoami(png=true));
