barcode_128

Barcode #barcode #barcode_128 #128

barcode_128(text, [list=true], [x], [y], [width], [height], [center], [stroke=#000000], [fill=#FFFFFF], [weight=1.00]) -> NULL || List of 0,1 for each bar

Generate Barcode 128

Arguments

Name	Required	Default	Description
`text`	yes	-	Text to use
`list`	-	true	If true, return a list of points, and don't draw (width, height, stroke, fill & weight are ignored)
`x`	-	-	X top left position
`y`	-	-	Y top left position
`width`	-	-	Width of individual bar
`height`	-	-	Height of individual bar
`center`	-	-	If true, x/y are the center
`stroke`	-	#000000	Stroke color
`fill`	-	#FFFFFF	Fill color
`weight`	-	1.00	Stroke weight (thickness)

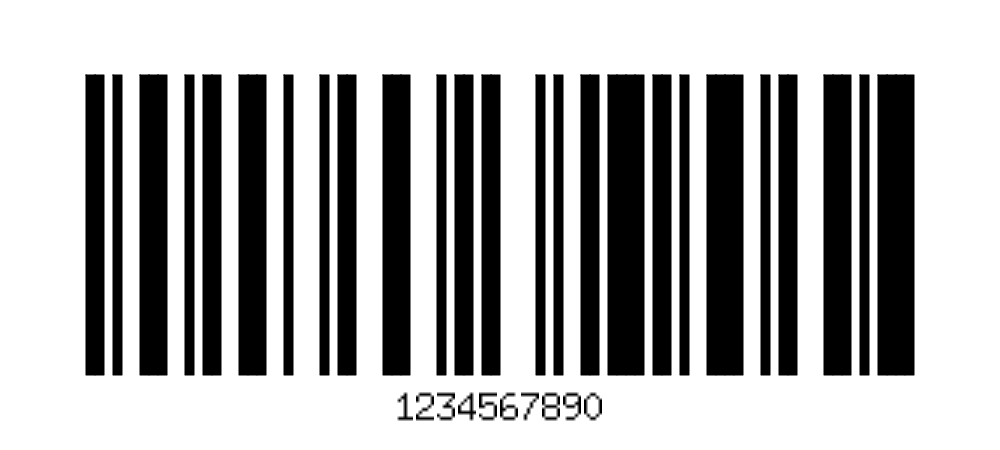

Full example

canvas(width=1000, height=450, center=true);
var texte = "1234567890";
var cb = barcode_128(texte, list=true);
console(cb);

coord_scale(3);
barcode_128(
    texte,
    x=0, y=0, center=true,
    width=3, height=100, fill="#000"
);
text(texte, 0, 65, ax=MIDDLE);

save("barcode_128.png");
