curve_svgpath

Curve #curve #curve_svgpath #svgpath

curve_svgpath(path, [segments=100], [draw=true], [stroke], [fill], [weight])

Draw or parse an SVG path

Syntaxe

curve_svgpath("M10 10 H 90 V 90 H 10 L 10 10", stroke="#000");

Arguments

Name	Required	Default	Description
`path`	yes	-	SVG path string
`segments`	-	100	Number of segments for curves
`draw`	-	true	Draw the path (true) or return points (false)
`stroke`	-	-	Stroke color
`fill`	-	-	Fill color
`weight`	-	-	Stroke weight (thickness)

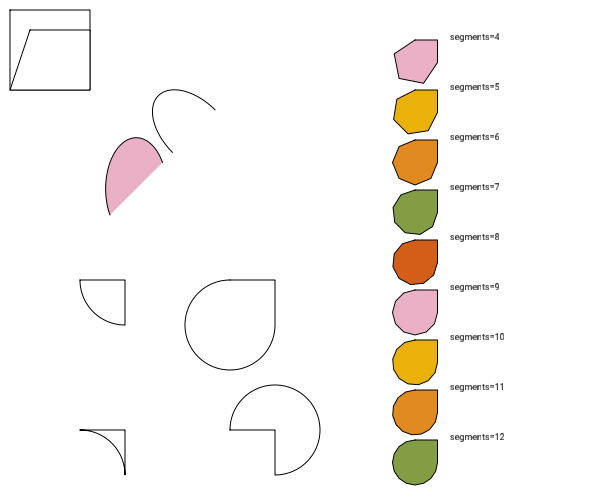

Full example

var palette = ["#EAB1C6", "#E9B109", "#E18A1F", "#829D44", "#D35E17"];

canvas(600, 500);
load_text_default(size=18);

curve_svgpath("M10 10 H 90 V 90 H 10 L 10 10");

curve_svgpath("M30 30 H 90 V 90 H 10 Z");

curve_svgpath("M110 215 a 30 50 0 0 1 52.55 -52.45", fill=palette[0]);
curve_svgpath("M172.55 152.45 a 30 50 -45 0 1 42.55 -42.55");

coord_open();
coord_translate(0, 200);
curve_svgpath("M80 80 A 45 45, 0, 0, 0, 125 125 L 125 80 Z");
curve_svgpath("M230 80 A 45 45, 0, 1, 0, 275 125 L 275 80 Z");
curve_svgpath("M80 230 A 45 45, 0, 0, 1, 125 275 L 125 230 Z");
curve_svgpath("M230 230 A 45 45, 0, 1, 1, 275 275 L 275 230 Z");
coord_close();


coord_open();
coord_translate(300, -0);
coord_scale(0.5);

for(var i=0; i<9; i++) {
    var seg = (i+4);
    curve_svgpath("M230 80 A 45 45, 0, 1, 0, 275 125 L 275 80 Z", segments=seg, fill=palette[i%palette.length]);
    text("segments="+seg, 300, 80);

    coord_translate(0, 100);
}

coord_close();




save("curve_svgpath.png");

var p = curve_svgpath("M80 80 A 45 45, 0, 0, 0, 125 125 L 125 80 Z", segments=12, draw=false);
console(p); // [25, -15.9807621135, 40, 10, 25, 35.9807621135, ...]
