grid

Shape #shape #grid

grid([xmin=0], [xmax=width of canvas], [ymin=0], [ymax=height of canvas], [stepminor=10], [colorminor=#CFD8DC], [weightminor=1], [stepmajor=100], [colormajor=#90A4AE], [weightmajor=1])

Draw a grid - from top/left to bottom/right by default, from center if canvas is centered

Syntaxe

grid()
grid(xmin=0, xmax=500, ymin=0, ymax=500, stepMinor=10, colorMinor="#FFE0B2", weightMinor=1, stepMajor=100, colorMajor="#FFB74D", weightMajor=1);

Arguments

Name	Required	Default	Description
`xmin`	-	0	left position of the grid
`xmax`	-	width of canvas	right position of the grid
`ymin`	-	0	top position of the grid
`ymax`	-	height of canvas	bottom position of the grid
`stepminor`	-	10	minor graduation
`colorminor`	-	#CFD8DC	minor color
`weightminor`	-	1	minor graduation weight
`stepmajor`	-	100	major graduation
`colormajor`	-	#90A4AE	minor color
`weightmajor`	-	1	majoe graduation weight

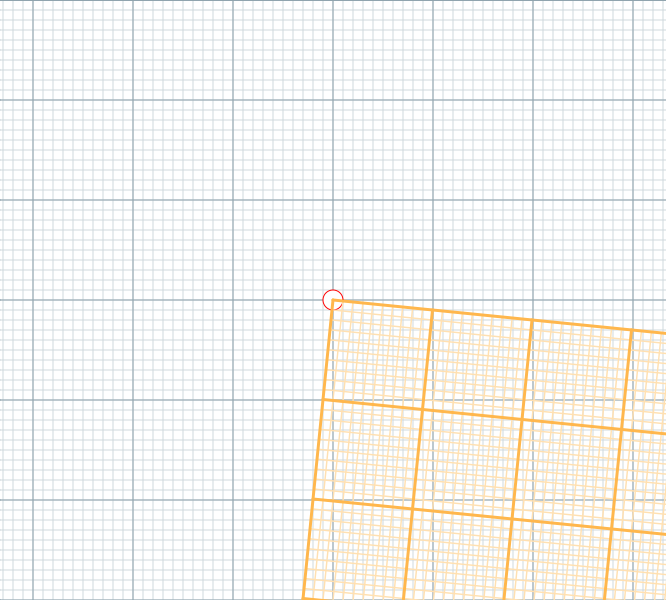

Full example

canvas(width=666, height=600, center=true);

grid();

circle(0,0,10, stroke="#F00");

coord_rotate(0.1);
grid(xmin=0, xmax=500, ymin=0, ymax=500, stepMinor=10, colorMinor="#FFE0B2", weightMinor=1.5, stepMajor=100, colorMajor="#FFB74D", weightMajor=3);

save("grid.png");
